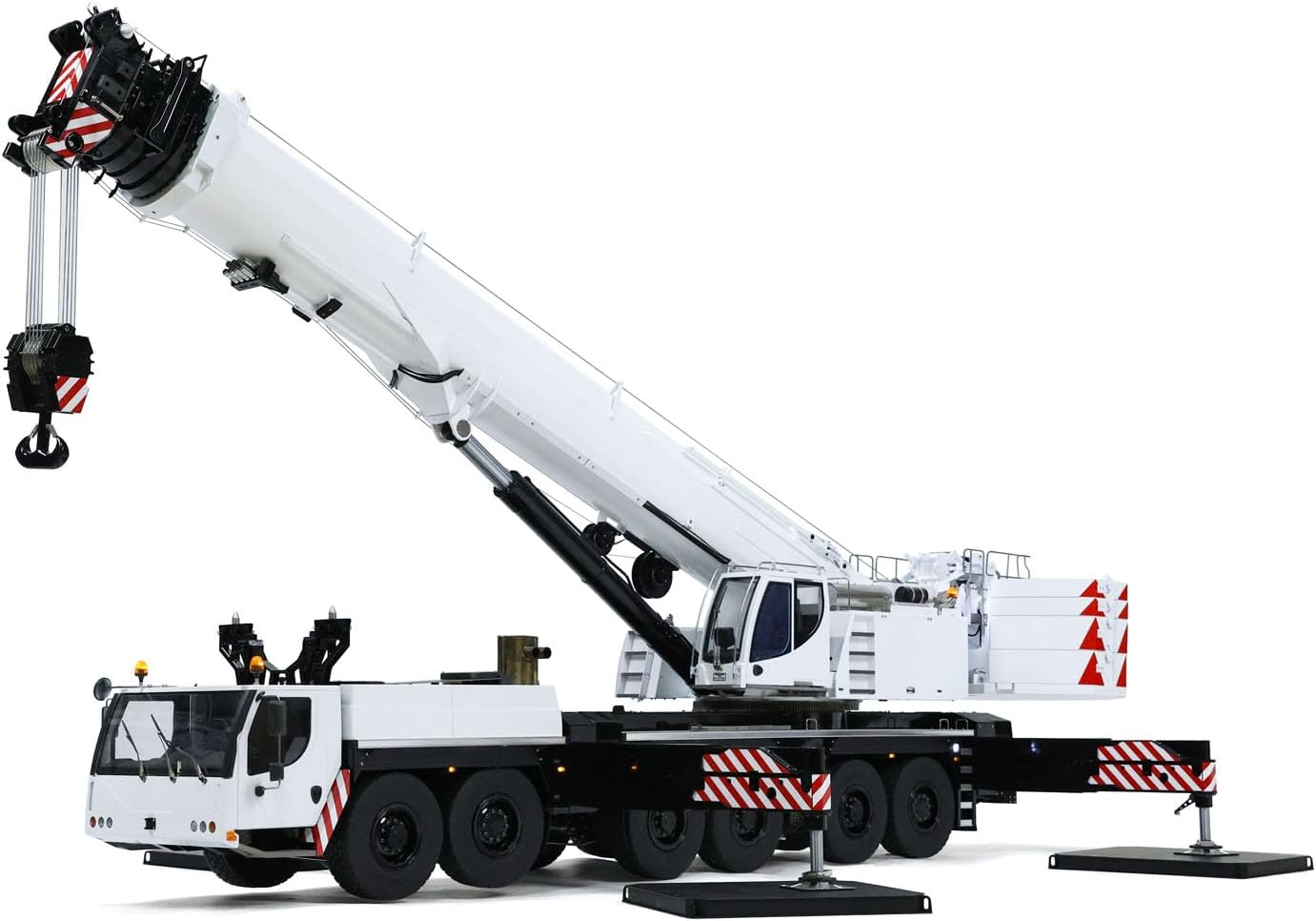

TOUCAN RC HOBBY 1/14 D1350 RC Hydraulic Crane Truck Construction Vehicle Heavy Machine Model
Product details
| Management number | 229916474 | Release Date | 2026/05/31 | List Price | US$7,604.00 | Model Number | 229916474 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
#Eyewhale 1/14 RC Hydraulic Mobile Crane Truck Construction Vehicle Heavy Machine #Note: Buyers without experience should not attempt to set up the remote control. If you are unsure how to operate the product, please consult with us. We have professional technicians available to help you solve any problems. #Specification: Item Condition: New, Painted and Assembled Material: Metal, Plastic Scale: 1/14 Crane Net Weight (kg): 49 Counterweight (Included) (kg): 34.3 (7.5+4x4.4+4x2.3) Crane and Packaging Gross Weight (kg): 68 Counterweight and Packaging Gross Weight (kg): 43 Overall Crane Dimensions (mm): 1299x214x300(L W H) Main Crate Dimensions (mm): 1570x320x460(L W H) Counterweight Crate Dimensions (mm): 620x220x360(L W H) ID: JMJ-D1350-1-MobileCrane-PNP-WBK #The Package Includes: 1/14 Mobile Crane Model Motor Servo ESC Hydraulic System Sound System Light System FlySky PL18EV Remote Controller and Receiver #The Package Does Not Include: Battery Charger Hydraulic Oil
- If you have any questions, please click on the store name to aks us.
- <br>Item Condition: New, Painted and Assembled <br>Material: Metal, Plastic <br>Scale: 1/14 <br>Crane Net Weight (kg): 49 <br>Counterweight (Included) (kg): 34.3 (7.5+4x4.4+4x2.3) <br>Crane and Packaging Gross Weight (kg): 68 <br>Counterweight and Packaging Gross Weight (kg): 43 <br>Overall Crane Dimensions (mm): 1299x214x300(L W H) <br>Main Crate Dimensions (mm): 1570x320x460(L W H) <br>Counterweight Crate Dimensions (mm): 620x220x360(L W H) <br>ID: JMJ-D1350-1-MobileCrane-PNP-WBK
- <br>#Parameter: <br>Telescopic Boom Mechanism: Pin Boom Telescopic Mechanism <br>Telescopic Boom Sections: 5+1 <br>Power System: Electric+ Hydraulic <br>Steering Modes: Road Steering/Crab Steering/ Reduced Swing Out Steering/Independent Rear Axle Steering <br>Drive/Driven Axle Setup: 12x8 <br>Suspension specifications: hydraulic adjustable coilover suspension <br>Crane Body MateriaL: Metal+ Plastic
- <br>Power Source Requirements: 3S battery+ XT60 12V DC power source （Not Included) <br>Battery Compartment Dimensions(mm): 153x46x36 <br>Receiver Required Channels/ Total Channels: 27/36 <br>Chassis Hydraulic Channels: 4 <br>Superstructure Hydraulic Channels: 7 <br>Maximum Lifting Capacity (kg): 60 <br>Boom Maximum Overall Height (mm): 5000
- <br>Turning Radius (mm): R416 <br>Boom Maximum Elevation Angle: 83 <br>Smallest Turning Radius (mm): R1350 <br>Boom Maximum Elevation Angle: 23 <br>Ground Clearance Max/Min (mm): 26/16 <br>The Angle of Approach (W/O Main Hook): 19 <br>Gearbox/Gear Ratio: 2speed 1/32 &1/10
- <br>Drive Motor Specifications: 3660 1000KV <br>Axle Gear Ratio: 1/10 <br>Tire Specifications(mm): 32/φ107.5(445/95R25) <br>#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
| ASIN | B0FNN3495F |
|---|---|
| Size | 51 inches x 8.4 inches x 11.8 inches |
| Color | White |
| Scale | 1:14 Scale |
| Theme | hobby-rc-cranes |
| Brand Name | TOUCAN RC HOBBY |
| Model Name | D1350 |
| Unit Count | 1.0 Count |
| Manufacturer | TOUCAN RC HOBBY |
| Power Source | Battery Powered |
| Material Type | Metal |
| Operation Mode | Remote Control |
| Item Dimensions | 59.49 x 20.88 x 13.4 inches |
| Number of Items | 1 |
| Toy Vehicle Form | Crane |
| Number of Players | 1 |
| Subject Character | hobby-rc-cranes |
| Additional Features | Rechargeable, Adjustable, Lightweight |
| Battery Description | Lithium-Ion Polymer |
| Included Components | Motor, Servo, ESC, Hydraulic System, Sound System, Light System, FlySky PL18EV Remote Controller and Receiver |
| Number of Batteries | 1 Nonstandard Battery batteries required. (included) |
| Is Assembly Required | Yes |
| Age Range Description | Adult |
| Educational Objective | Hobbyist Skill Development |
| Are Batteries Required | Yes |
| Batteries are Included | Yes |
| Manufacturer Part Number | TH24483-AMZUS1-S |
| Manufacturer Maximum Age MONTHS | 900.0 |
| Manufacturer Minimum Age MONTHS | 216.0 |
| Manufacturer Warranty Description | 1 Year Warranty Against Manufacturer Defects |
